Model : R2012MC Switch (CWDM)
1. Summary
The R2012MC CWDM based 1 core optical ring Switch offers 8 Ethernet 10/100/1000TX ports, and four SFP / mini-GBIC The R2012MC Switch is a useful product where the network of computers, automation, intelligent traffic systems, semiconductors and heavy plant equipment, ships. When the equipment failure does not affect to the next node.
2. Standard
| Parameter | R2012MC |
|---|---|
| Standard |
IEEE802.3/3u/3ab/3z 10Base-T/100Base-TX/1000Base-T IEEE802.1d/w spanning tree protocol IEEE802.1Q VLAN IEEE802.3ad Link aggregation |
| Copper Ports | 8 10/100/1000Base-T RJ45Ports |
| SFP/mini-GBIC ports | 4 1000Base-Sx/Lx (외장) 1 1000Base-Sx/Lx (내장) |
| LED | Power1, Power2,Link/Active per port |
| Switch Fabric | 34Gbps |
| Address Table | 8K entries |
| Topology | Ring ,BUS, ETC |
| Layer 2 | Management interface : RS232 console, Web browser, SNMP v1, v2 VLAN: 4K, IGMP snooping Spanning Tree : IEEE802.1D, IEEE802.1w |
| Dimension (W*D*H) | 210*200*52 with Top Heat sink |
| Power Input Voltage | 100-240VAC,50/60Hz dual Power (Option) |
| Operating Environment | Temperature : -40-80 Humidity : 5-90% |
| Storage Environment | Temperature : -45-85°C Humidity : 5-90% (Non-condensing) |
*The above values of the parameters can be subject to change for the purpose of device improvement.

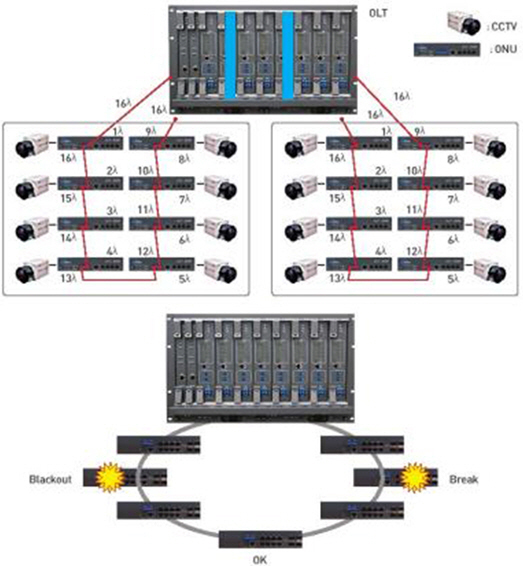

3. Topology
