PCS for Wind Turbine

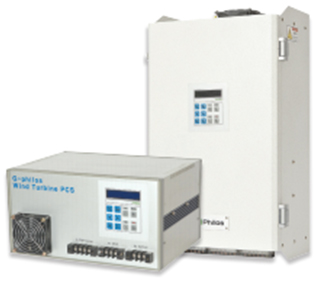

GF-WT005 and GF-WT010 Power converter for wind turbine which consists of AC-DC, DC-AC power converter, reactor and protection panel. AC/DC conversion module provides the maximum power of generator within variable speed range with torque control and PWM technology. The DC/AC conversion module provides the high quality power to grid thanks to its permanent power factor monitoring and to its soft grid connection. Dynamic braking module provides protection
from rotor over-speed with abnormal condition.

Specifications

		GF-WT005	GF-WT010
Input from Generator	Input Power	5 kW	11 kW
	Input Voltage	600 Vrms	330 Vrms
	Rated RPM	160 RPM	200 RPM
	Input Current	15 Arms	22 Arms
Output to Grid	Rated Grid Power	5 kW	10 kW
	Rated Grid Voltage	220 Vrms	3Ø, 380 Vrms
	Rated Frequency	60 Hz	60 Hz
	Max. Output Curren	23 Arms	23 Arms
Dimensions[mm]		350 x 300 x 200	400 x 270 x 700

PCS for Photovoltaic

		GF-WT005
Rated Power Output		3kW
Input	Rated Voltage	DC 380V
	Rated Current	DC 7.9A
	Allowable Voltage Range	DC 0V ~ DC 400V
	Allowable Max. Current	DC 10A
	Operating Voltage	DC 200V ~ DC 400V
	Operating Current	DC 0A ~ DC 10A
Output	Rated Voltage	DC 380V
	Rated Current	DC 7.9A
	Overload Capacity	110% / 30 sec
	Output Control	CV(Constant Voltage)
Dimensions[mm]		420 x 300 x 230
